Accutek AVF-8 Piston filler SS

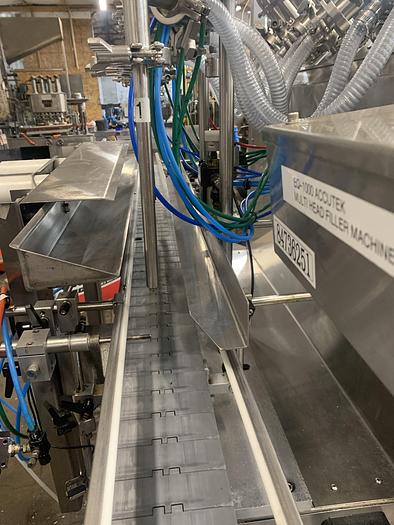

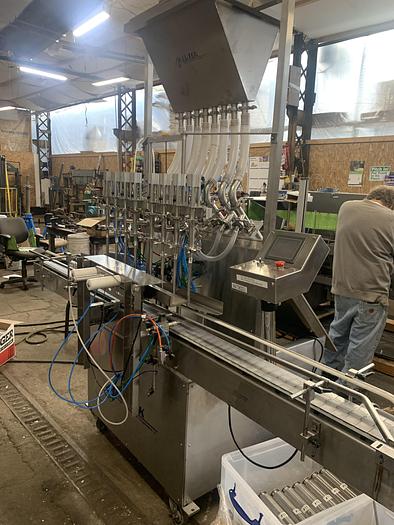

Accutek AVF-8 - 8 head piston filler with indexing

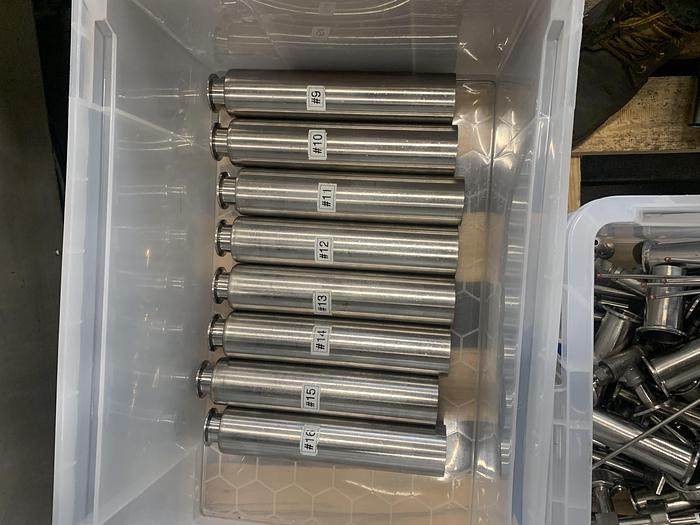

8 head piston filler with 22oz and 4 oz piston sets.

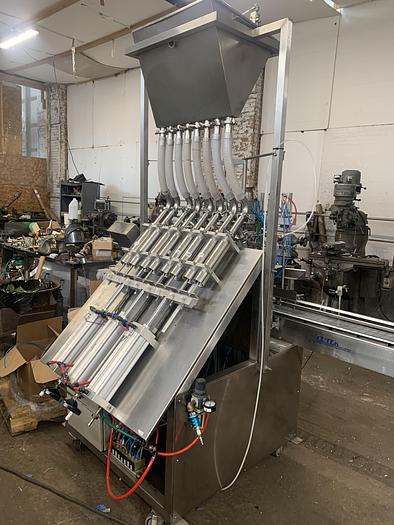

Right to Left flow with indexing pin type stops, 8 head piston rack - air powered draws from overhead hopper, to piston, and out to 8 pneumatic impingement style valves.

Unit Specifications Dimensions: 120” x 56” x 96” (304.8 cm x 142.2 cm x 243.8 cm)

Weight: ~1000 lbs. (455 kg)

Electrical Requirements: 120 VAC, Single Phase, 60 Hz (220 or 240 VAC available)

Air Requirements: 100 PSI / 3 CFM

Output Filling Speed: Up to 80 CPM1 Viscosity Range: 1 - 20,000 cps (Centipoise)
